SMITH-EG-110F
LPG TRANSFER PUMPS - CORKEN & SMITH

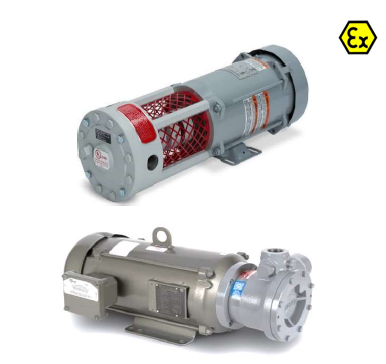

LPG TRANSFER PUMPS
Designed for transferring LPG liquid gas into LPG bottles
If using CORKEN or SMITH pump with auto LPG filling scales, it is then
recommended a minimum of 4 x 48kg DV bottles (via manifold) or BULK TANK.
Pump specifications: CORKEN C1O
• Performance: Operates at 3,450 RPM (60 Hz).
• Pressure: Maximum working pressure is 400 psig (27.6 bar), with a maximum differential pressure of 100 psi (6.9 bar).
• Design: Close-coupled design (model C12FD6A, for example).
• Efficiency: The design allows for handling high vapor content and provides
smooth, non-pulsating flow.
• Applications: Ideal for autogas cylinder filling and small bulk transfer.
• Maintenance: Easy access to internal components (impeller, seal) for servicing
Optional:
Manual starter & required bypass valves (e.g., B166-12 3/4" or 1" B166-16 bypass valves), Pressure gauge, Hydraulic relief & Vent valves
Pump specifications: SMITH EG-110F/ELNOR
• Design: 2-Gear
• Connection: In/Out 3/4" F.NPT / Bypass return ½” F.NPT
• By-Pass: Cartridge pre-set 110psid **
• Strainer Screen: Built-in
• Capacity: 30 litres / min @ 20psid and 25 litres / min @ 75psid
• Motor: 1.1kw (1.5HP) Single Phase 220VAC 50Hz
• Flame-proof Exd IIBT4 IP55
• Speed 3000 rpm. Foot mount. Cable entry M20 F
• ** Bypass comes pre-set for external
CORKEN C1O
SABS Explosion-proof approved: MASC S/23-8013X
SMITH EG-110F/ELNOR
SABS Explosion-proof approved: Exd IIBT4 IP55
|
|
|
|
