PRECISIO-3

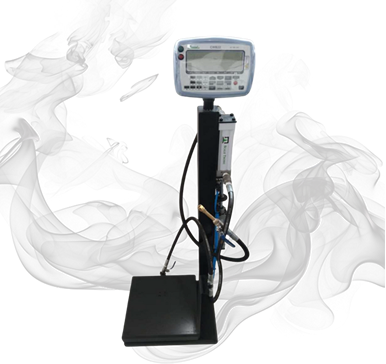

PRECISIO 3 - Pneumatic LPG pump with Auto Switch-off of AIR
PRECISIO-3 pump is a Double acting Pneumatically operated pump.
To fill small to medium quantities such as 3-19kg cylinders, most suited for Hardware stores, Rural Areas , on-the-go filling & small depots.
The Precisio 3 pump comes equipped with 2 1/2" 1.5m hoses with double bullnose & cadac reducing to fill all types of LPG cylinders, S10 Lubrication Oil.
Includes CWB22 IS R/4050-150kg Set-point controlled floor scale.
Output controller & floor scale 150kg (FOR TRADE-USE)
Specifications:
- Filling time: 2.0kg /minute
- Low Maintenance
- Pneumatic Cylinder
- 1/2" Inlet and Outlet Hoses
- Bullnose to Fill Larger range of cylinders
- Small cylinder Filling Adaptor
- Spare Seal Kit Excl. VAT
- 150kg Platform Scale
- Ex Approved
- Pneumatic recprocating Cylinder
- Pneumatic Air Valves
- 10m 8mm Inlet Air tube
- Safe Area Power Supply and Shut off System
Operation:
- Pump Mode: Automatic
- Electrical Supply: 220VAC
- Medium: Air Compressor
- Auto-Shut off: YES
Scale specifications:
- Weighing Units: kg and lbbr>
- Operating Temperature: 0°C to 40°Cbr
- Display: Extra-large 40mm high, 6 digits LCD (Seven Segments) with LED backlight
- Known numeric key manual tare entry
- No real-time clock
- Function keys: Numeric 0~9, Sample, Count,
Backlight, M+, Recall, MC, Hi. Lo, I/O set, Print,
CE, PT, Units, Net/Gross, Zero, Tare, On, Off
Air Compressor Requirement (not Provided):
- 250l Minimum requirement
- 2,5Hp
- 220VAC power
- 4.5-5.5 Bar
|
|
|
|
