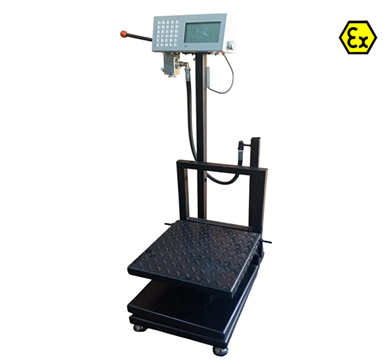

PRECISIO 7 - GY7170-150 Ex - Auto Filling & Switch-off Circuit
PRECISIO 7 - GY7170-150 Ex - AUTO
Applicable using 48kg DV bottles supply
- with AUTO SWITCH-OFF circuit
• Applicable using 48kg DV BOTTLES supply - WITH AUTO SWITCH-OFF CIRCUIT
• SABS Explosive-proof Ex ib IIC T4 approved & SABS for Trade-use approved
• Suitable for filling material: Liquefied petroleum gas (LPG) and other liquefied gas with less than Class Ex ib IIC T4 IA
• Certificate No.: SABS S/13-379 X Certification: ZONE 1 & 2
Scale features:
• Precision / Accuracy: Class III
• Quantitative Filling
• Optional for auto cut-off of pump if using series of DV 48kg
bottle supplies or continues if using BULK tank supply with by-pass loop.
• Ex Intrinsically-safe Explosive-proof
• Safe and reliable, Simple and convenient
• One key set / pre-set weights
• From small 3kg bottles up to 48kg & forklift bottle filling
• Automatic tare of the filling gun and bottle weight, filling convenient
operation
• Platform Dimensions: 40cm x 50cm x 5mm chequered top plate for long lasting
• Dimension(L*W*H): 40 x 80 x 1,5m Height
• Weight: 67kg
Operation explanation:
Integral check-weigher with refill function ensures filling tolerance compliance. An automatic go-to-zero of tare value & thus automatically to recuperate the residue gas, which eliminates overfilling. Gas filling totals onboard including residual, gas added and saleable gas. A START button with highly reliable long lasting electronic valve starts the auto process. Tare zone check ensures correct fill program per cylinder.
Two pump options:
CORKEN model C10 pump specifications:
• Inlet 1-1/4" NPT
• Outlet 1" NPT
• RPM—50 Hz 2,880
• RPM—60 Hz 3,450
Max differential pressure:
• 2880 RPM @ 50 Hz, psi (bar) 60 (4.1)
• 3450 RPM @ 60 Hz, psi (bar) 70 (4.8)
Mounting options:
• Close coupled Yes
• Direct driven (101) Yes
• V-belt (103) Yes
• Direct mounted frame (DL) Yes
• Impeller material Bronze (std)
• O-ring material PTFE, Viton®1
• Seal seat material Silicon carbide
• Minimum/maximum temp (°C) -32/107
• Maximum driver hp (kW) 5 (3.7)
SMITH model GE-110F pump specifications:
• Design: 2-Gear
• Connection: In/Out 3/4" F.NPT / Bypass return ½” F.NPT
• By-Pass: Cartridge pre-set 110psid **
• Strainer Screen: Built-in
• Capacity: 30 litres/min @ 20psid and 25 litres/min @ 75psid
• Motor: 1.1kw (1.5HP) Single Phase 220VAC 50Hz
• Flame-proof Exd IIBT4 IP55
• Speed 3000 rpm. Foot mount. Cable entry M20 F
• ** Bypass comes pre-set for external bypass
Optional:
• Pressure gauge, Hydraulic relief & Vent valves
• By-pass valve
• Elevated waist height flip platform
• Remote stand for indicator
• Two size bottle filling valves
Applications:
• Power: 2000mAh Lithium-ion Rechargeable battery.
• Battery charger included with an additional battery & battery drum.
• Battery operation: minimum 45hrs
• Pressure: 0 - 1.6MPa (16Bar)
• Capacity x Accuracy: 150kg x 50g
|
|
|
|
